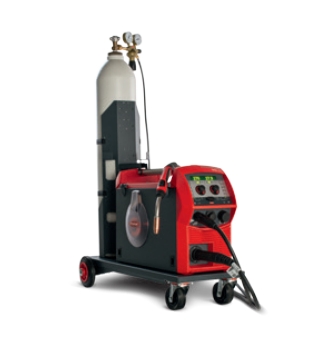

Product Code: Fronius Tps i
Thanks to its modular design and theease with which the system can beextended, the TPS/i is ideal for a widerange of manual applications. lt isavailable in the following powercategories:270,320,400,500,and600 A.The various welding packages offer evenmore flexibility, with the advantage thatthe operator can switch the individuaprocesses with speed and ease dependingon the application. Reqular softwareupdates add to the functional scopeoffered by the system.
ROBUST TOUCH DISPLAY
/Informative plain-text display /Suitability for building sites and ease of use/ 30 different languages available
WELDING PACKAGES-AVAILABLE AS UPGRADEOPTIONS AT ANY TIME
The perfect welding package to suit any applicationAvailable packages: Standard/Pulse/LSC/PMC/CMT
RANGE OF PREMIUM TORCHES
/A range of gas-cooled or water-cooled torch designsStandard, PullMig, and PullMig CMT/ Available in Standard, Up/Down, or JobMaster versions, orwith an optional potentiometerSmart cooling concept that prolongs the service life ofwearing parts

Device Parameters

 TPS 270iCTPS 320iCTPS 400iCTPS 500iCTPS 600iC
Mains voltage3x400 V3x400 V3x400 V3x400 V3x400 V
Mains fuse16 A35 A35 A35 A63 A
Grid frequency50-60HZ50-60HZ50-60HZ50-60HZ50-60HZ
Mains voltage tolerance+/- 15%+/- 15%+/- 15%+/- 15%+/- 15%
Cos phi0.990.990.990.990.99
MIG/MAG welding current range3-270 A3-320 A3-400 A3-500 A3-600 A
10 min/40°C (104°F) 40% duty cycle270 A320 A400 A 500 A 600 A
10 min/40°C(104°F) 60% duty cycle220 A260 A360 A430 A600 A
0 min/40°C(104°F) 100% duty cycle190 A240 A320 A360 A500 A
Open circuit voltage66 V71 V73 A 71 A71 A
MIG/MAG working voltage14.2-27.5 V14.2-30 V14.2-34V14.2-39V14.2-44V
Degree of protectionIP23IP23IP23IP23IP23
Dimensions LxW x H687x276 x445 mm706 x300x510 mm706 x300x510 mm706 x300x510 mm706 x300x510 mm
Weight32.7 kg35.8 kg36.45 kg38 kg50kg
